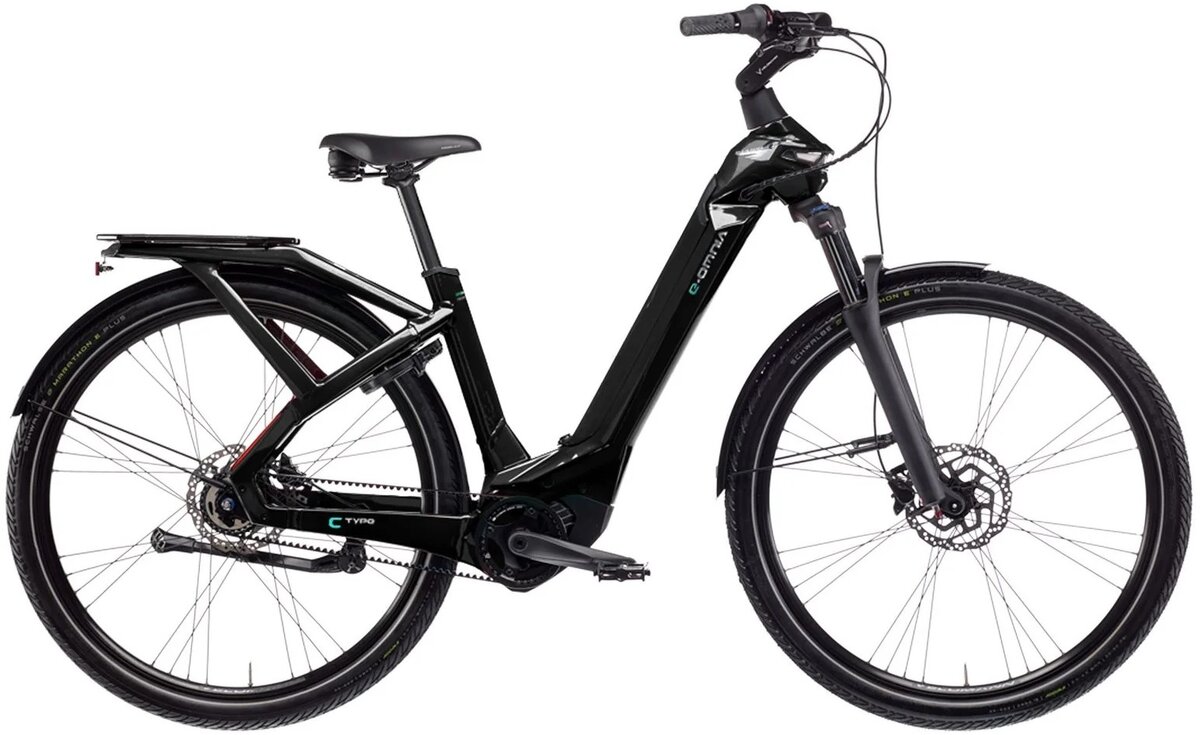

Bianchi OMNIA C TYPE BELT NX5 Black Class 3

FRAME
E-OMNIA C-Type, StepThru chain drive ALU, 3
size: SM, MD, LG (45-50-55), IG 135mm, Ready
to fix the chainguard, Post mount 180mm disc
brake type, Ready to fix rear kyckstand, custom
rear carrier integrated in the frame, BatteryWall
Bosch OmniaC, Set dropout (sx+dx) QR 135mm
external derailleur
SEATPOST CLAMP SeatpLock SET AL bk T-Tronik + Omnia
Screw M5x40, CH, hex, black
HEADSET FSA NO.55R/558 1.5" Custom Anod Black w/o
top cover and with only starnut
FORK
Suntour travel 100mm, COIL w/Preload adjuster
AC4C, 34 STKM, CR platin, 1.5"to1-1/8" tapered,
STKM, OLD diam.15-110, 15AH2-110,alloy, max
rotor 203, post mount 160mm direct
SHIFTER Shimano, SL-C7000-5, NEXUS, REVO SHIFTER,
5-SPEED, 2500MM BLACK OUTER
CRANKSET
FSA Metropolis, Alloy E-bike ISIS Crank, ISIS /
170mm / Solid Forged, Chainline 50mm,
MegaTooth 38T
BOTTOM BRACKET included in the motor
CHAIN
CDX Belt Gates Carbon Drive, 118T, black 1298
mm Length, 11 mm Pitch, 12 mm Width, 11M-
118T-12CT
CASSETTE /
FREEWHEEL
Gates Belt Drive, 28T, Shimano Nexus 5 Mech.
Hub 6-Lobe "Unified" Sprocket for 45,5 mm
Beltline
BRAKE
Shimano, BL-MT200, BR-MT200, SM-MAF180P/
P2, RESIN PAD, 1000MM HOSE, 1700MM
HOSE
BRAKE LEVER Included in the brake set
DISC ROTOR Shimano, SM-RT10, M 180MM, W/LOCK RING,
FOR RESIN PAD ONLY
FRONT HUB
Shimano, HB-MT400-B, CENTER LOCK DISC 32H,
FOR 15MM THRU TYPE AXLE, OLD:110MM, W/O
LOCK RING
REAR HUB Shimano, SG-C7000-5D, NEXUS, 5-SPEED, FOR
CENTER LOCK DISC BRAKE, 32H 135X187MM
RIM/WHEELSET
EBIKE MAXX 29" - ETRTO 622 x 25C 32hole,
height 19mm, double wall, single eyelet, wide
angle, 6,5mm valve
TIRE Vittoria e-Randonneur, 50-622, rigid, black refl
G2.0
STEM Velomann 0°>90° L70MM
HANDLEBAR Velomann, 31.8*630 / Rise 34mm / Back Sweep
41°
GRIP / TAPE Grip 130 black-black
SEATPOST Velomann, lenght: 350mm-SM, 400mm-MD/LG,
diam.31,6mm, 0mm seatback
SADDLE Velomann, Rail Elastomer, black 8067 cover,
black steel rail, no clamp, 256x220, 612gr.
PEDALS VP, axle 7mm boron steel, EPB system, size
112x83,3mm, reflector included.
FRONT LIGHT Integrated custom front and side lights made
w/Spanninga
REAR LIGHT Spanninga integrated rear lights
REAR CARRIER / PLATE custom rear carrier integrated into the frame
design
KICKSTAND Velomann interasse 40mm - capacità 35kg.
MUDGUARD / STAY Bianchi custom mudguards
MOTOR UNIT Bosch Performance Line CX motor unit
w/625Wh Bosch PowerTube integrated battery
E-OMNIA C-TYPE | NEXUS 5SP | YR/YSBE9
116
COLOR: 4G
MOTOR UNIT Bosch Performance Speed Line 250W,
w/625Wh Bosch integrated battery 85Nm
