Details

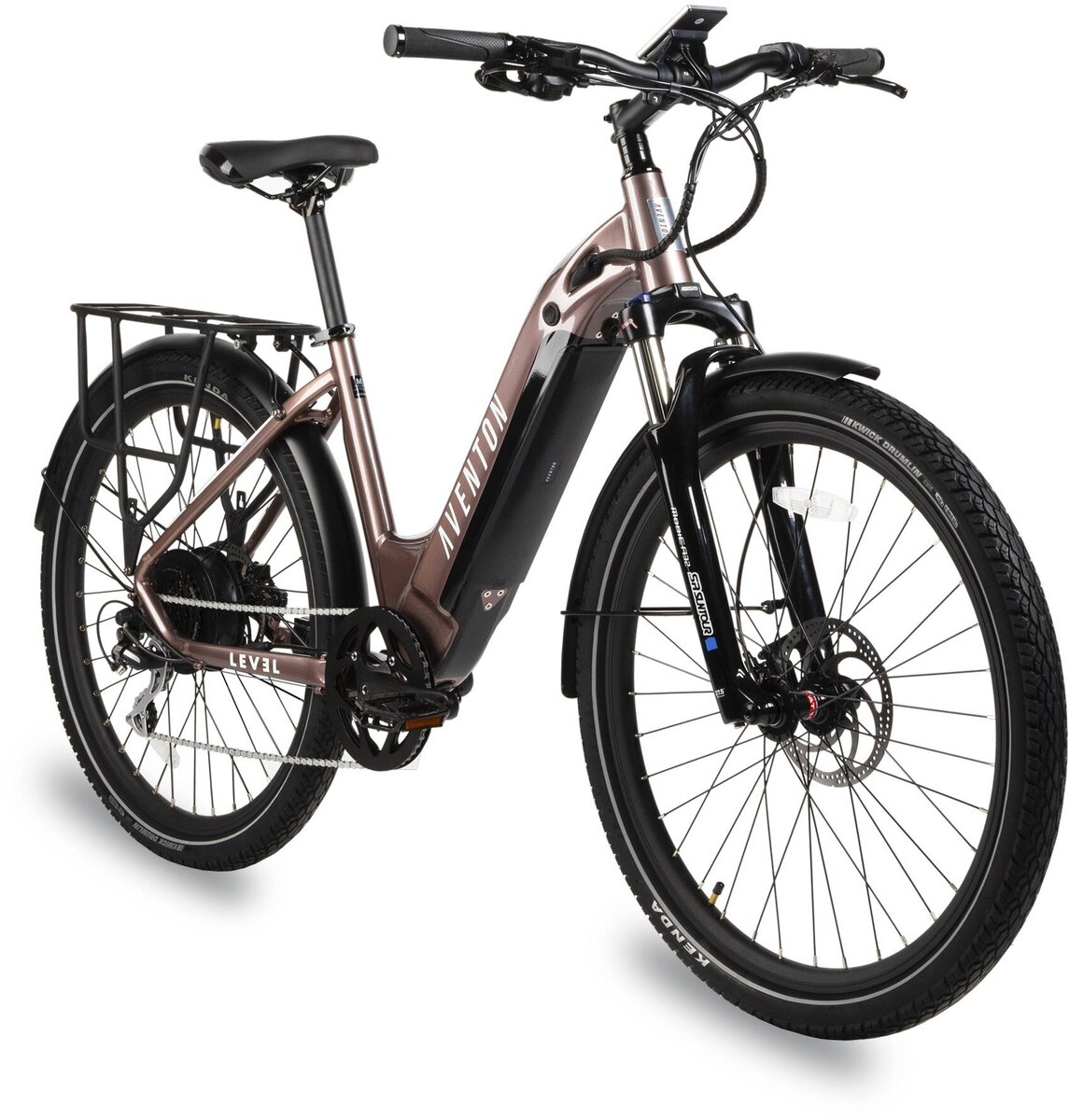

The Level Step-Through is designed for riders who rate comfort and ease-of-use as highly as they do functionality. Built in fenders, a versatile rack, and ride-tempering front suspension mean that wherever you go, you'll be riding in comfort, carrying all you need while safely protected from the elements below. With the same technology under the hood as our beloved Level commuter ebike, but with a lower center of gravity and a step-through for the less able-bodied among us, the Level Step-Through will keep up with the traffic during the week and even the fastest of grandchildren on the weekend.
Level comes in 2 sizes to suit almost all adults and teens:
- S/M 4'11" - 5'7"
- M/L 5'8"- 6'2"
S/M | M/L | |
---|---|---|
A. Reach | 372mm | 404mm |
C. Standover | 475mm | 475mm |
D. Effective Top Tube | 572mm | 612mm |
F. Head Tube Length | 120mm | 130mm |
M. Wheelbase | 1095mm | 1130mm |
Height | 4'11" - 5'7" | 5'8" - 6'2" |
Min. Saddle Height | 810mm | 875mm |
Max. Saddle Height | 975mm | 1065mm |
Specs
Frame | 6061 Double-Butted Aluminum Alloy with Internal Battery |
---|---|
Fork | Coil spring suspension, thru-axle, 75mm travel, with lockout |
Rims | Double Wall Aluminum 36h Front & Rear |
Hubs | 36H Disc Thru-axle Front, Nutted Rear |
Spokes | Black Stainless 12 Gauge |
Tires | 27.5" x 2.2" Ebike Rated, Reflective Sidewalls |
Bottom Bracket | Square Taper, Sealed |
Crankset | 170mm |
Chainrings | 46T |
Shifters | 8 Speed |
Rear Derailleur | 8 Speed |
Cassette/Freewheel | 12-32T, 8 Speed Cassette |
Chain | 8 Speed |
Brakes | Hydraulic Disc |
Rotors | 180mm |
Handlebars | Aluminum 31.8mm, 680mm |
Tape/Grips | Ergonomic Comfort |
Stem | Threadless, 31.8mm, 7 Degree Rise |
Headset | VP Sealed Bearing Headset |
Seatpost | Forged Alloy, 27.2mm, 2-Bolt Clamp |
Saddle | Aventon by Velo |
Pedals | 9/16" Alloy Platform |
Accessories & Extras | Kickstand |
Motor |
750W (Peak) 500W (Sustained), 48V Brushless Rear Hub Motor Throttle on demand - Throttle from a complete stop |
Battery | Removable Internal Lithium-ion 48V, 14Ah (672Wh) |
Controller/Display | M5 LCD Smart Easy Read Display with Backlight |
Charger | 48V 3 Amp Fast Charger, 4-5 Hour Charging |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Rose Gold / Medium/Large | 660845950061 | 95006 | 210000035329 |
